UBB-UAAAlternator Accessories

Belt Buddy Universal Tension Adjustment System

Reduce your installation time and frustration! Many installers rely on the Belt Buddy Universal Adjustment Arm for alternator installations and belt tensioning. Precision cut and power coated for protection from corrosion, the Belt Buddy can be purchased as a kit or by individual component.

Part
 Number
              Description
UBB   Universal Adjustment Arm & Belt Buddy Combination.
  This is the complete assembly (UBB = UAA + BB), designed for adjusting
   belt tension and providing a positive stop for no slipping.
UBB2   This is the UBB with a 1/2″ Offset in the UAA for certain mounting applications.
UAA   Universal Adjustment Arm Only.
  The UAA provides a longer, more positive arm for alternator adjustment.
UAA2   This is the UAA with a 1/2″ Offest for certain mounting applications.
BB   Belt Buddy for the UAA.
  The BB adjustable mechanism converts your existing UAA or UAA2 to a UBB or UBB2 .
BBU   Belt Buddy for Any Adjustment Arm.
  This product is designed to fit on your existing tensioning arm,
  thereby converting it to our Belt Buddy System.





BBU (1)BB (1)













Alternator Protection Modules

Alternators can be subjected to voltage spikes caused by lithium battery shutdowns, intermittent connections and other over-voltage events.  Balmar has introduced a robust Alternator Protection Module which helps to protect the alternator’s diodes and internal voltage regulator against spikes (clamping up to 60V) and sustained over-voltage conditions (beginning around 20V for the 12V version).  The APM can absorb multiple surges of such energy, and can absorb surges in excess of 200 amps without failure to continually protect your alternator.  Visual and audible alarms indicate if the device has been compromised and needs replacement.

Balmar APM devices provide intelligent, robust, solid state protection in a small easily mounted package at the rear of the alternator between the B+ and B- terminals.  Balmar APM devices can be used to protect all alternator brands.  Balmar APM devices meet ISO 16750-2 for Load Dump Protection and ISO 7637-2 for Surge Protection.

Part Number Description
APM-12 Alternator Protection Module, 12V
APM-24 Alternator Protection Module, 24V



Yanmar Installation Hardware Kits

6-0020Pre-matched hardware Kits for various Yanmar engines can save time and frustration.  6-0020 Kit is required for all AT-Series Alternators.
6CX and 6LP kits include the required pulleys.

 Part Number   Description    Yanmar Engine Model
6-0020  Install Hardware Kit   GM, JH, LH, LY
6-0030  Install Hardware Kit  6CX
6-0040  Install Hardware Kit  LP, 6LP



Rebuild Kits

7094Recommended for cruisers, Balmar’s Offshore Repair Kits ensure that you will be ready if your alternator needs repair. Kits vary by alternator model, but all provide the most commonly needed components, such as bearings, brushes, and complete regulator/rectifier assemblies.

 Part Number   Description   Alternator Series
7060  Rebuild Kit   6-Series (12V)
7060-24  Rebuild Kit   6-Series (24V)
7090 Rebuild Kit 90-Series (12/24V)
7094  Rebuild Kit   94-Series (12/24V)
7095  Rebuild Kit   95-Series (12/24V)
70-AT-165  Rebuild Kit   AT-Series (165A)
70-XT-170 Rebuild Kit XT-Series (170A)
70-XT-250 Rebuild Kit XT-Series (250A)
70-AT-200  Rebuild  Kit   AT-Series (200A)

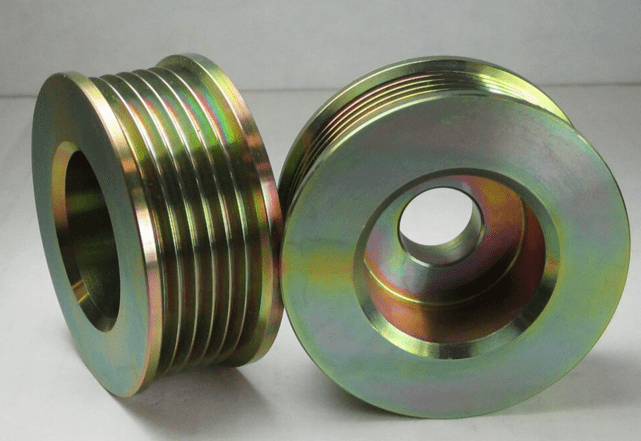

PulleysAlternator Pulleys & Mounting Spacers

Balmar offers an extensive selection of pulleys, belts & mounting spacers for its Small, Large and Extra-Large Frame Alternators. Pulley models vary by bore (17mm and .875”), outside diameter, belt width and type, and rear shoulder width. Balmar pulleys are anodized steel, unless otherwise noted.   Identify your required pulley geometry in the tables below and click on the part number link to review a picture and further information.

 Part Number   Description Type
 6-Series and 94-Series Pulley Accessories
1303  Pulley, Single 2.2″ x 1/2″ V, 17mm Bore  Single Vee
61-0010  Pulley, Single 2.7″ x 1/2″ DeepV, 17mm Bore (Std SV on 6-Series)    Single Vee
1315  Pulley, Single 3.0″ x 5/8″ V, 17mm Bore Single Vee
24-2100  Pulley, Single 3.4″ x 1/2″ V, 17mm Bore Single Vee
1305  Pulley, Dual 2.2″ x 7/16″ V, 17mm Bore Dual Vee
4038-CAM  Pulley, Dual 2.7″ x 1/2″ V, with 3/8″ Spacing, 17mm Bore Dual Vee
61-0020  Pulley, Dual 2.7″ x 1/2″ DeepV, 17mm Bore (Std DV on 6-Series) Dual Vee
61-0060  Pulley, Dual 2.7″ x 1/2″ V, 17mm Bore, (For Yanmar 6CX) Dual Vee
2763  Pulley, Dual 2.7″ x 5/8″ V, 17mm Bore Dual Vee
5908MPV  Pulley, Dual 2.9″ x 1/2″ V, 17mm Bore Dual Vee
1330  Pulley, Dual 2.9″ x 1/2″ DeepV, 17mm Bore Dual Vee
1318  Pulley, K6 1.9″ Serpentine, 17mm Bore  6 Groove Serpentine
61-0050  Pulley, K6 2.26″ Serpentine, 17mm Bore (Yanmar Common Rail) 6 Groove Serpentine
1273  Pulley, K6 2.3″ Serpentine, 17mm Bore 6 Groove Serpentine
1316  Pulley, K6 2.4″ Serpentine, 17mm Bore 6 Groove Serpentine
61-0070  Pulley, K6 2.45″ Serpentine, 17mm Bore (Std K6 on 6-Series) 6 Groove Serpentine
2749B  Pulley, K6 2.7″ Serpentine, 17mm Bore 6 Groove Serpentine
1310  Pulley, K8 2.4″ Serpentine, 17mm Bore, Short (Std) 8 Groove Serpentine
1311  Pulley, K8 2.4″ Serpentine, 17mm Bore, (Cummins) 8 Groove Serpentine
 AT-Series Pulley Accessories
17-AT-0020  Pulley, Dual 3.2″ x 1/2″ V, 17mm Bore, Short Shaft (Std DV on AT-Series)  Dual Vee
17-AT-K-6  Pulley, K6 2.5″ Serpentine, 17mm Bore, Short Shaft (Std K6 on AT-Series)  6 Groove Serpentine
 17-AT-K-7  Pulley, K7 2.2″ Serpentine, 17mm Bore, Short Shaft 7 Groove Serpentine
17-AT-K-8  Pulley K8 2.7″ Serpentine, 17mm Bore, Short Shaft 8 Groove Serpentine
 95-Series, 97-Series, 97EHD-Series and 98-Series Pulley Accessories
 5535-B  Pulley, Dual 2.7″ x 1/2″ V, .875″ Bore Dual Vee
5540  Pulley, Dual 2.7″ x 5/8″ V, .875″ Bore Dual Vee
5570  Pulley, Dual 3.6″ x 5/8″ V, .875″ Bore Dual Vee
59473  Pulley, Dual 2.9″ x 1/2″ V, .875″ Bore Dual Vee
5538-CAM  Pulley, Dual 2.7″ x 1/2″ V, .875″ Bore Dual Vee
5550  Pulley, Triple 2.9″ x 1/2″ V, .875″ Bore Triple Vee
 5552  Pulley, K6 2.7″ Serpentine, .875″ Bore 6 Groove Serpentine
5539  Pulley, K8 2.5″ Serpentine, .875″ Bore 8 Groove Serpentine
5537-B  Pulley, K8 2.7″ Serpentine, .875″ Bore 8 Groove Serpentine
 6-Series & 9-Series Mounting Spacers
 10-4048  Spacer, 1/4″ Width, 1.0″ Diameter
 10-4000  Spacer, 1/2″ Width, 1.0″ Diameter
 10-4047  Spacer, 1.0″ Width, 1.0″ Diameter

3Spacers
